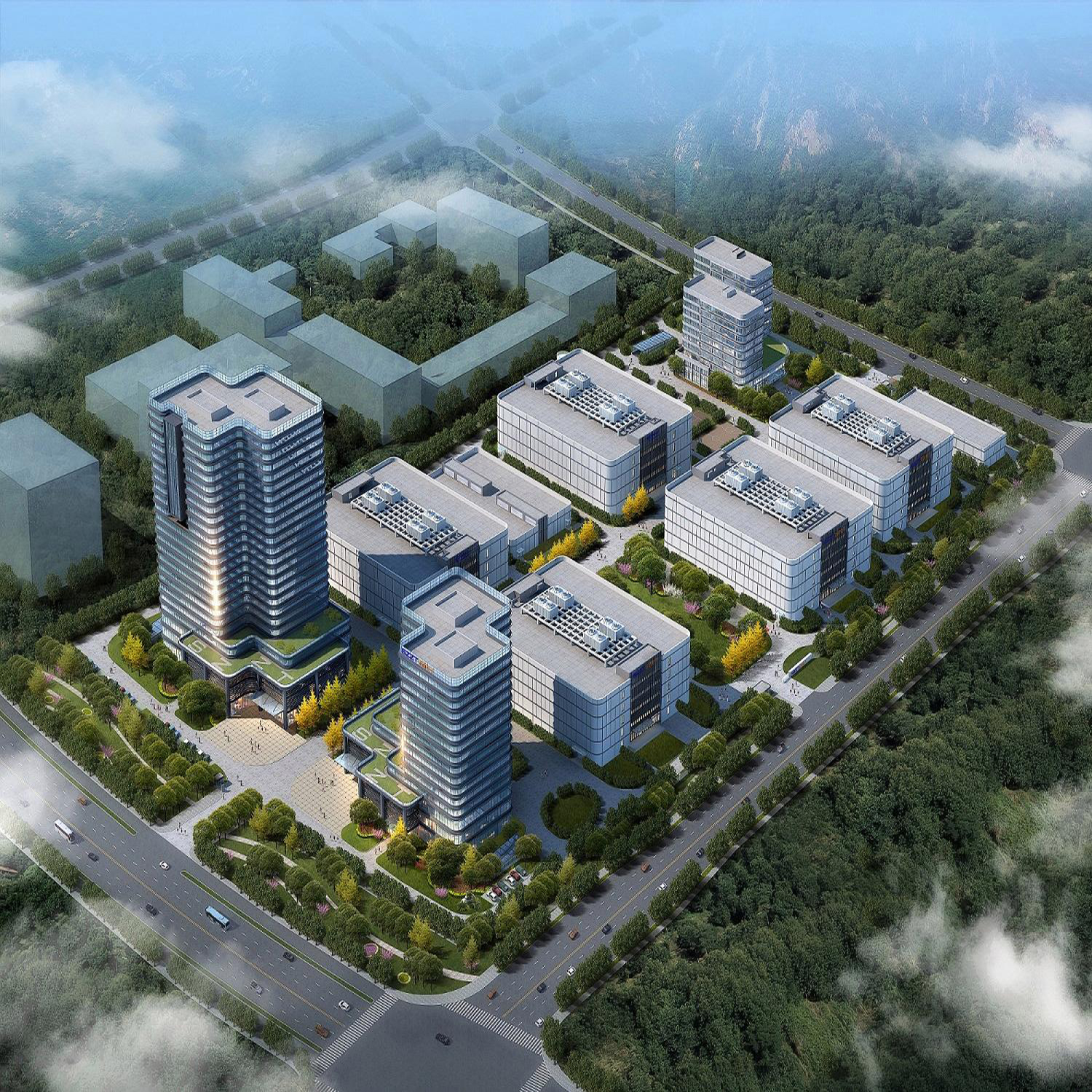

The construction site of Zentong Electronic Big Data Cloud Computing Industrial Park (Guangming Cloud Valley) is located in Phase II of Zentong Electronic Industrial Park, No. 3, Tongguan Road, Guangming New Area, with a total floor area of 23680.11 square meters and 15 floors. The project plans to build a large Internet Data Center (IDC) with 1450 cabinets to provide basic server access, hosting services and other security and value-added services for various Internet customers.

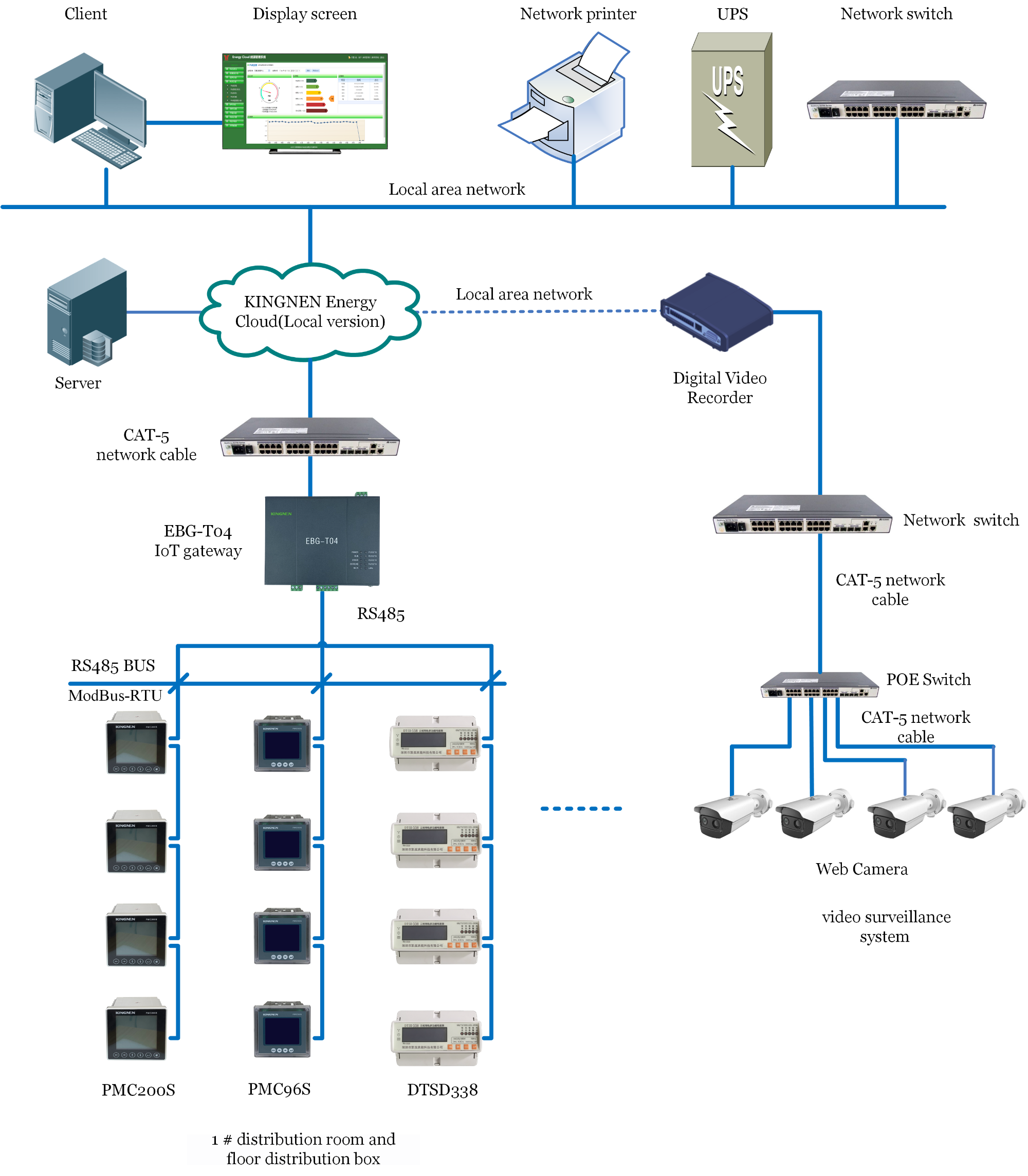

The project uses KINGNEN Energy Cloud energy management system software(local version) to assist building property management personnel in the operation and management of energy supply system and energy consumption equipment, providing the best technical platform for building energy information construction and energy conservation management. The system integrates energy management and energy conservation, sends real-time energy consumption data and energy consumption indicators to each energy operator, manager and decision-maker, and can understand the energy consumption status and energy consumption level of the monitored buildings at any time, so as to strengthen energy management and improve energy efficiency, and provide scientific basis for energy conservation transformation of high energy consumption buildings.
Serial No. |
Device Name |
Specification |
quantity |
unit |
notes |
1、Monitoring indoor equipment |
|||||
1 |
Monitoring host |
Intel core™ i7-8700;8GB 2X4GB DDR4 2666MHz UDIMM; 1TB 7200rpm SATA 16X DVD;WIN 10 |
1 |
pcs |
Supplied by Party A |
2 |
Network printer |
HP1108 A4 Laser printer |
1 |
pcs |
Supplied by Party A |
3 |
UPS |
C1KS 1KVA Standard configuration |
1 |
pcs |
Supplied by Party A |
2、Data transmission equipment |
|||||
4 |
network switch |
network switch |
5 |
pcs |
Supplied by Party A |
5 |
Intelligent Gateway |
EBG-T04 |
14 |
pcs |
|
3、Software system |
|||||
6 |
Energy management system platform |
KINGNEN Energy Cloud(Local version) |
1 |
set |
|
7 |
operating system |
Windows 2016 Server |
1 |
set |
|
8 |
data base |
MS SQL |
1 |
set |
|
9 |
server |
Lenovo ST558 |
1 |
set |
|
4、Monitoring equipment |
|||||
10 |
Multifunctional power monitoring instrument |
PMC200S |
57 |
pcs |
|
11 |
PMC96S |
351 |
pcs |
|
|
12 |
3 phase guide rail multi-function ammeter |
DTSD338 |
196 |
pcs |
|
13 |
web camera |
DS-2CD2T87E(D)WD-L |
5 |
pcs |
|
