Overview

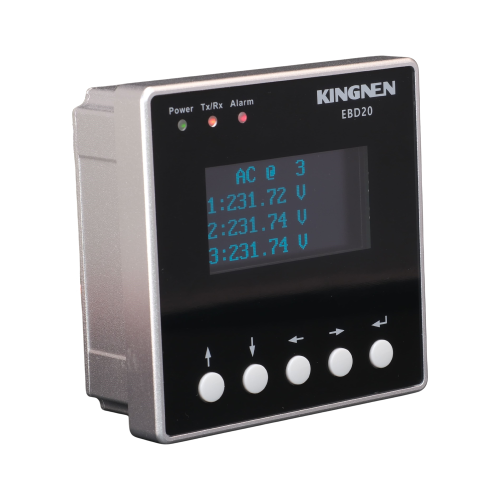

The EBD display module has three main functions, it can display values of voltage, current, power, energy and other parameters of the electrical system. Connecting to the downstream modules through EngyBus, it's responsible for powering the downstream modules, collecting the data and uploading it with RS485 port. Most importantly, the module can do the DC/AC acquisition at the same time, widely used in the mid-large PV, EV projects.
Main Features
Display Parameter
AC: U1, U2, U3, I1, I2, I3, Pt, Qt, St, PFt, IEt, OEt
DC: V1, V2, V3, P1, P2, P3, IE1, IE2, IE3, OE1, OE2, OE3
Hardware Interface
1 Terminal for power supply and uploading communication
2 EngyBus ports for module communication
Main Specifications
|
Display Type
|
OLED
|
|
Resolution
|
128*64
|
|
Power supply
|
24 V ±10%
|
|
Number of EngyBus Connections
|
2
|
Connection
System connection
Connecting to EBU - voltage measuring module
Connecting to upper devices through RS485 ports
Connecting to upper devices through RS485 ports
