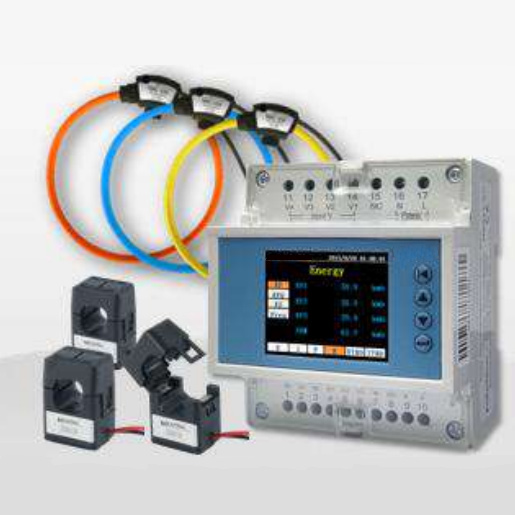

ME631 is a versatile three-phase power meter engineered for comprehensive energy monitoring and power quality analysis. It captures critical electrical parameters in real-time—including voltage, current, power types (active, reactive, apparent), power factor, and harmonic distortion—enabling precise system diagnostics.

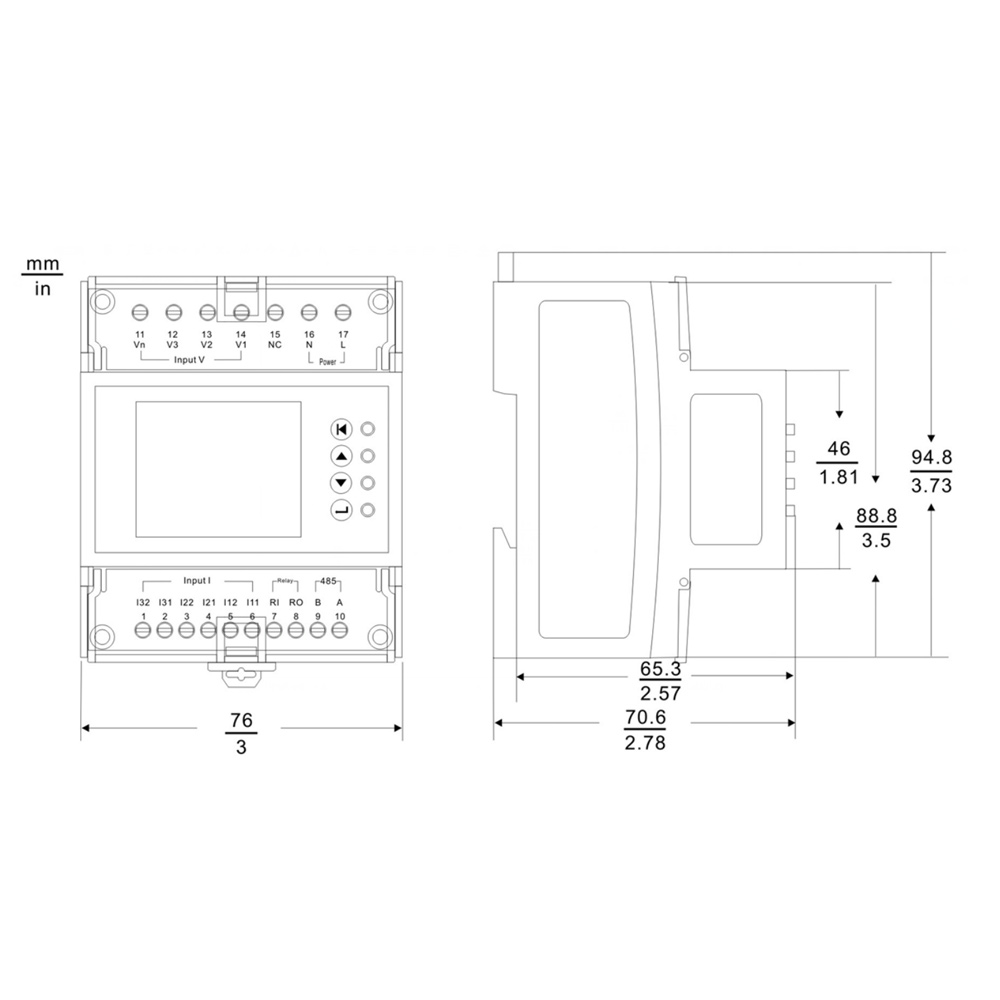

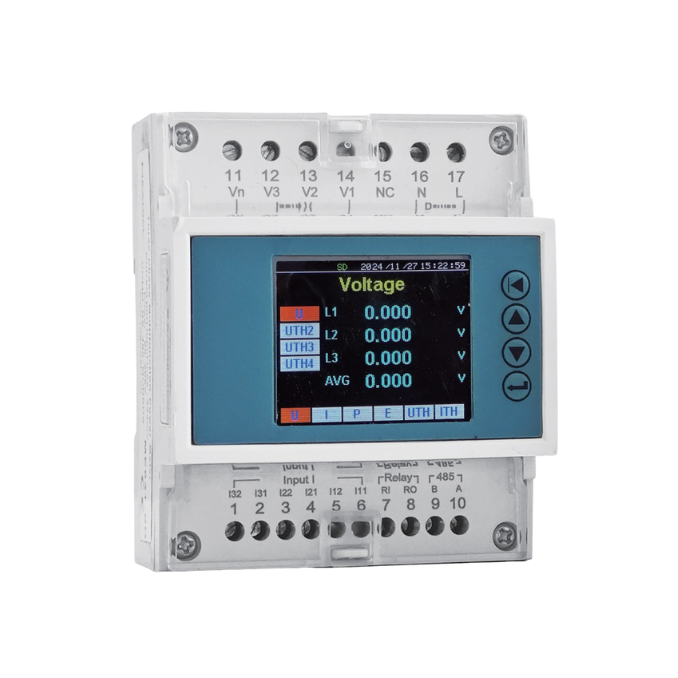

Featuring an intuitive hierarchical menu system, users navigate dedicated sections for voltage, current, power, energy, and harmonic data via physical buttons. Its adaptable design supports diverse industrial setups through compatibility with external sensors like CTs or Rogowski coils and multiple wiring configurations.
Communication leverages RS-485 with MODBUS RTU protocol for remote monitoring, while programmable relay outputs enable alarms or control actions. Advanced functionalities include tariff-based energy management, sensor calibration tools, and optional data logging for long-term analysis.
Designed for reliability in demanding environments, the meter adheres to industrial standards for electrical safety and environmental resilience. Simplified installation via DIN-rail mounting and clear wiring guidelines makes it ideal for energy audits, load optimization, and power system diagnostics.
|
Features |
|
|
Model |
ME631 |
|
Support external sensor |
333mV CT |
|
Rogowski coil |
|
|
Programmable digital output |
Alarm |
|
3 Tariff |
|
|
Instantaneous rms values |
|
|
Voltage |
U, UTH2, UTH3, UTH4(Per Phase, AVG） |
|
Current |
I, ITHD2, ITHD3, ITHD4(Per Phase, AVG） |
|
Power |
P, FQ, S, PF(Per Phase, SUM） |
|
Energy |
EP, EFQ, ES, Freq(Per Phase, SUM） |
|
over 999.9GWh, value reset |
|
|
UTHD(%) |
UTHD, THD2, THD3, THD4(Per Phase, AVG） |
|
ITHD(%) |
ITHD, THD2, THD3, THD4(Per Phase, AVG） |
|
Alarm |
|
|
Setting |
U and I each phase |
|
Output form |
Buzzer, Relay |
|
Record (optional) |
|
|
Record interval |
1s to 9999s（default 1min） |
|
Record format |
csv |
|
Record capacity |
1GB（default） records 8 years by default |
|
Record data |
Voltage(V), UTHD(%), Current(A), ITHD(%), Frequency(Hz), PF(power factor), Active Power(KW), Reactive Power(KVar), Apparent Power(KVA), ActiveEnergy(KWh), Reactive Energy(KVarh), Apparent Energy(KVAh) |
|
Specification |
|
|
Model |
ME631 |
|
Product component type |
Multifunction power meter |
|
Poles description |
3PH4W 3PH3W |
|
1PH2W (L-N) 1PH2W(L-L) 1PH3W(L-L-N) |
|
|
Device application |
Power analysis |
|
Tariff meter |
|
|
Input type |
External CT (333mV only) |
|
External Rogowski coil |
|
|
Display |
2.0-inch TFT screen display |
|
Sampling rate |
8k samples per second |
|
Mounting mode |
Clip-on |
|
Mounting support |
DIN rail |
|
Harmonic |
52th Max |
|
Measurement accuracy |
|
|
Current |
0.5% from 1% to 120% (don’t ensure accuracy when <10A) |
|
Rated current |
500A (0.5% from 10A to 600A) |
|
3000A (0.5% from 30A to 3600A) |
|
|
10kA (0.5% from 100A to 12kA) |
|
|
Rogowski coil specification |
85mV/kA@50Hz±0.5% |
|
Voltage |
0.2% from 100V to 500V (L-L and L-N) |
|
Power factor |
±0.005 from 10% to 120% |
|
Active/Apparent Power |
IEC62053-22 Class 0.5 |
|
Reactive power |
IEC62053-21 Class 2 |
|
Frequency |
0.01% from 45 to 65Hz |
|
Active energy |
IEC62053-22 Class 0.5s |
|
Reactive energy |
IEC62053-21 Class 2 |
